A SQUISHY FUN MACHINE DESIGNED FOR SUBTLE SHREDDING, NIMBLE BIKEPACKING AND LOOKIN’ NEAT.
THE FRAMESET
Every rider seems to have that one bike that got away. Whether you sold it, crashed it, or traded it in for something more “progressive,” most of us have a regret or two when it comes to our buying and selling choices. This is that bike. After a broken seatstay, and the model being discontuned, we knew we had to resurrect a favorite 27.5” trail bike to 29” and make a few tweaks to better fit our intended use. Living in Colorado Springs affords us the opportunity to bike camp and bikepack in high elevations, right outside our front door, and this bike is designed to ride it all. Through downtown to the trailhead, up the locals’ trails to make our way up Tava into elevations and scenery that are forever worth the effort of every pedal stroke. Oh, and did I mention the descents? YUM.

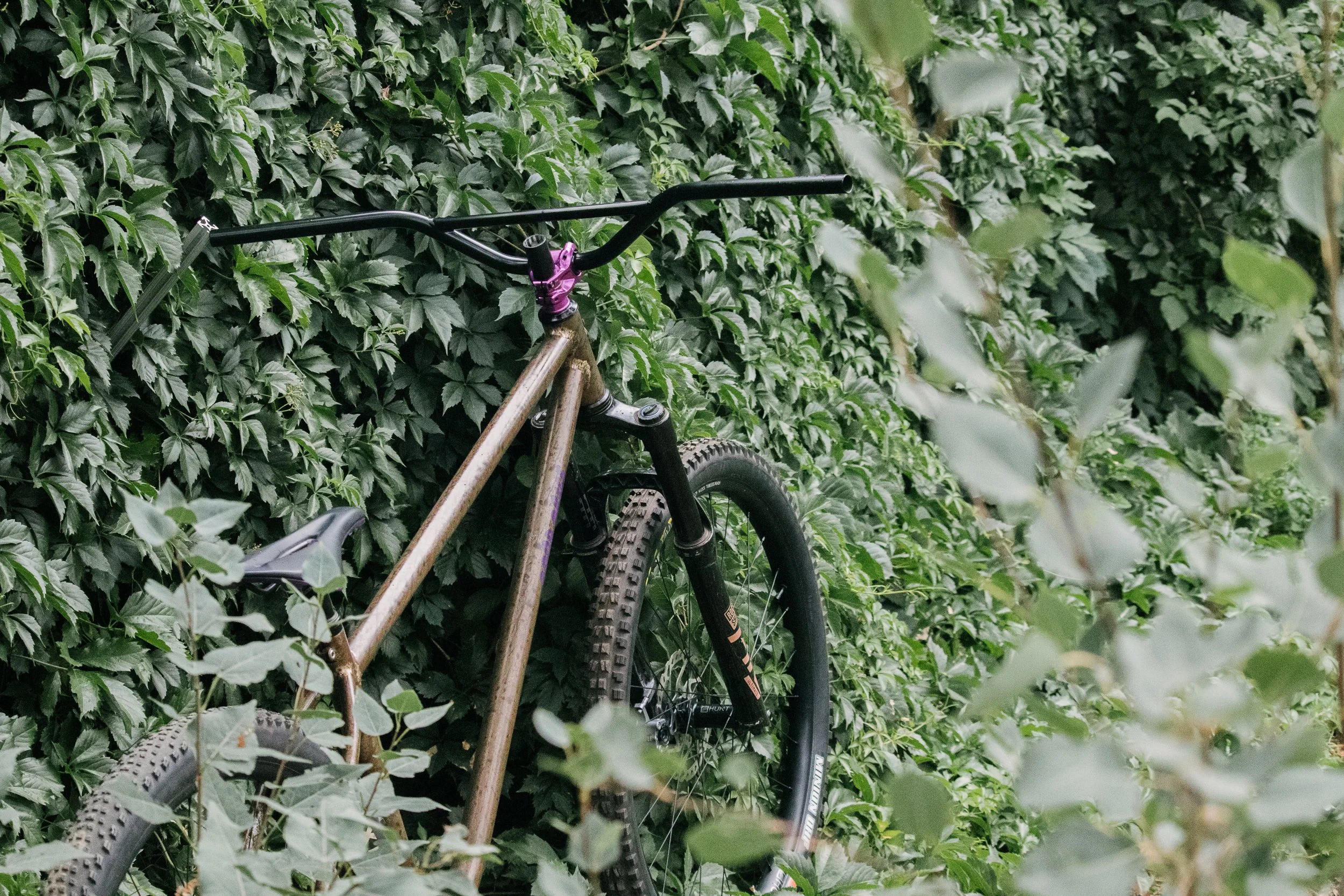

Built as light as possible with a mix of Dedacciai and Velospec Elite tubing, the goal was simple: take a beloved geometry, lighten it up, then make it stout enough to handle the kitty litter descents that the Pikes Peak region is known for. Kitted out with a Pike Ultimate 140mm fork, externally-routed mechanical components, and a killer custom frame bag by Dark Void (made from upcycled Ikea bags!), this bikepacking machine ensures its own capability through its industrious (and repairable) concept.
-
Reach - 502mm
Stack - 664mm
Headtube Angle - 66 deg
Headtube Length - 126mm
Seattube Angle - 74 deg
Seattube Length - 460mm
Bottom Bracket Drop - 72mm
Chainstay Length - 438mm
Axle - 148mm x 12mm TA & 110mm x 15mm TA
Maximum Tire Width - 2.4
Maximum Chainring - 36t
-
Fork Axle to Crown - 552mm
Fork Offset - 60mm
-
• UDH Dropouts
• 15 deg downtube bend for extra framebag and waterbottle space
• 44mm Headtube
• Stealth Dropper Routing
• Custom Dark Void Framebag
• Paul Comp Levers and Klampers
• Custom party patina finish
Talk to the framebuilder and plan your dream bike, or kick your build off asap.
